#6-32 Phillips Flat Head Machine Screws 18-8 Stainless Steel

#6-32 Phillips Flat Head Machine Screws by Bolturos

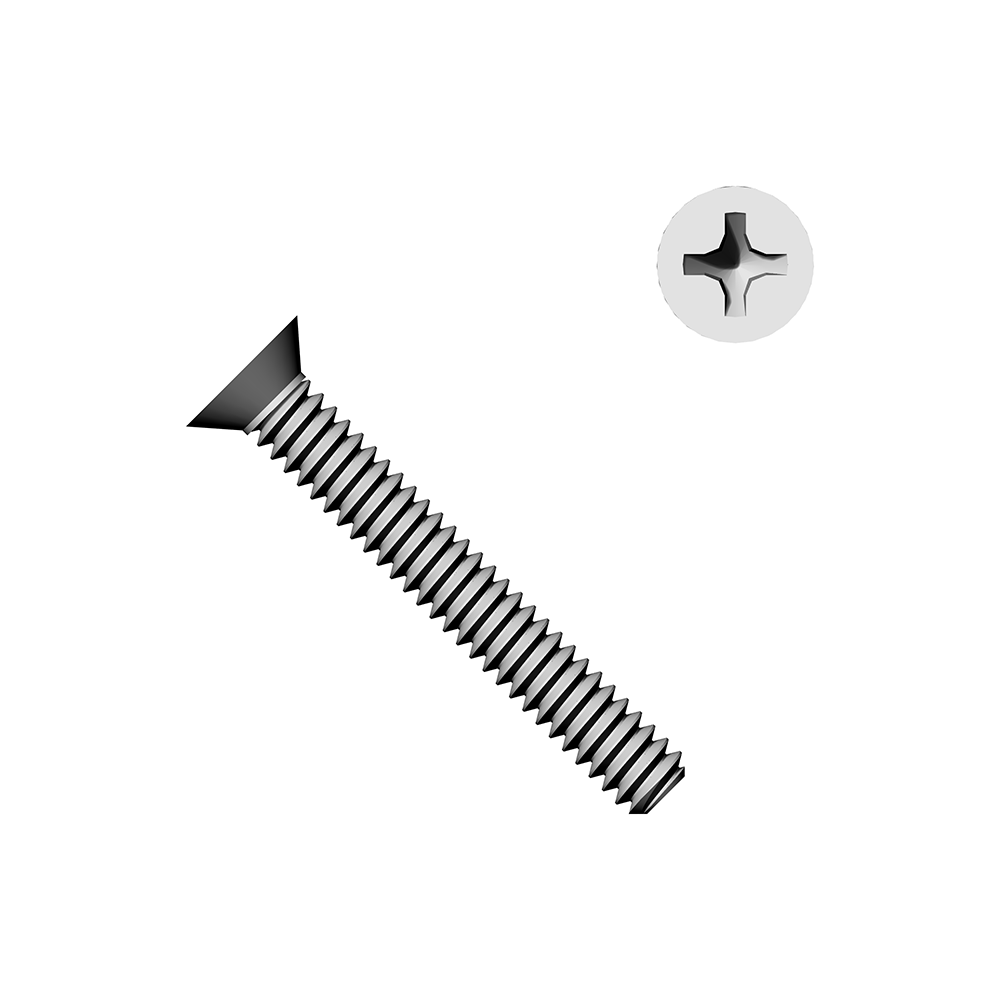

These screws are made of high-quality 18-8 stainless steel for corrosion resistance and feature a deep #2 Phillips drive. The flat head design is angled to sit flush in countersunk holes. Fully threaded with a UNC #6-32 and a blunt tip.

Specifications

Thread Size: #6-32
Thread Diameter: 0.138"
Threads Per Inch (TPI): 32 - Coarse Thread
Thread Direction: Right Hand
Length: Varies on selection*
Drive Type: Phillips #2
Head Type: Flat (Type H)
Head Diameter: 0.262"
Head Thickness: 0.083"
Countersink Angle: 82°
Point: Flat
Material: 18-8 Stainless Steel
Finish: Plain
System of Measurement: Inch (Imperial / U.S.)
Standards Met: ASME B18.6.3
Country of Origin: China, Taiwan, or Thailand

*Note: Lengths over 1" are typically 1/16" shorter than stated (e.g., 2" = 1-15/16" actual). This is normal among standardized screws. Please keep this in mind if your use case requires exact lengths.
