#4-40 Nylon Insert Locknuts 18-8 Stainless Steel

$1.49 USD

Sale Sold out

Package Quantity 25 50 100 250 500 1000 2500

Quantity

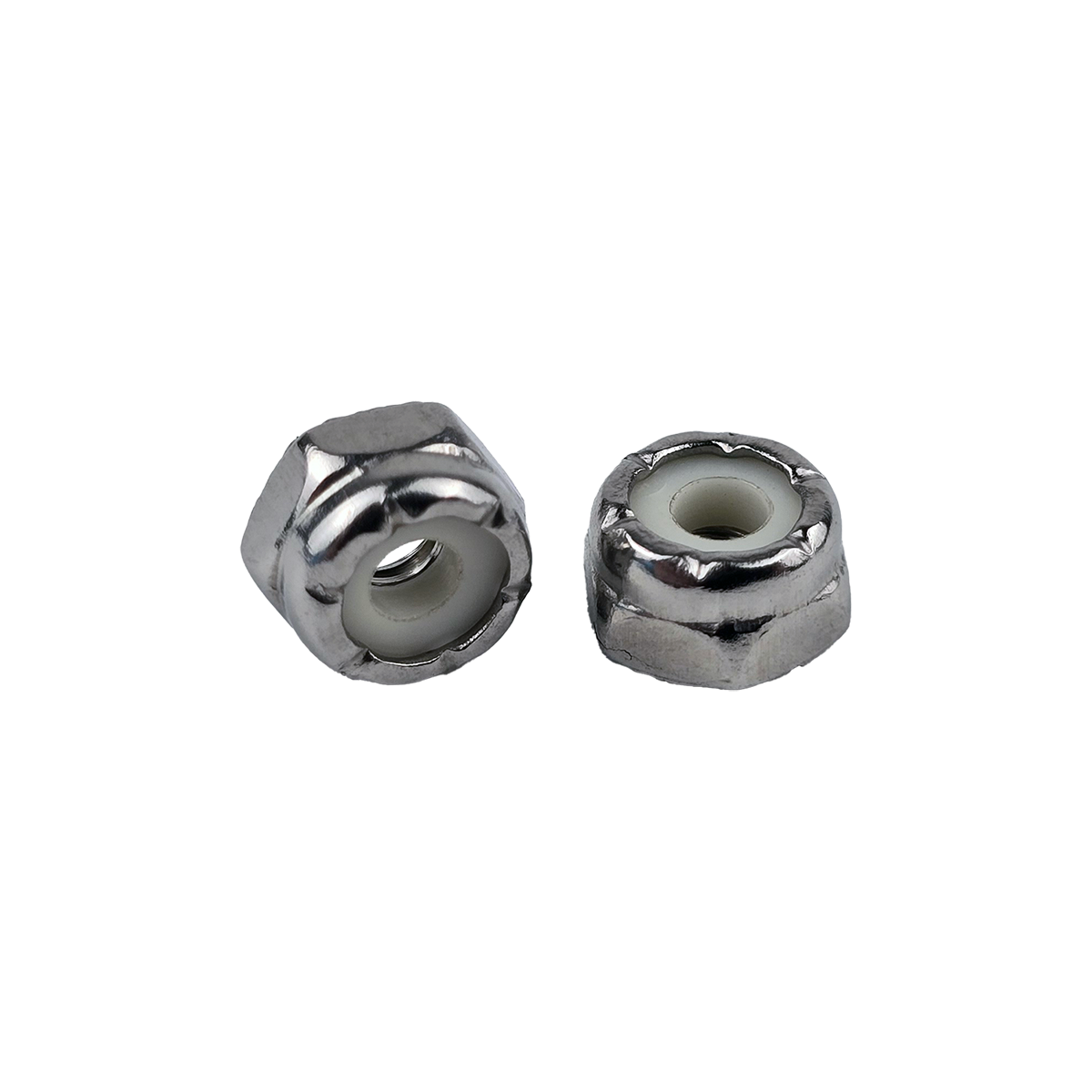

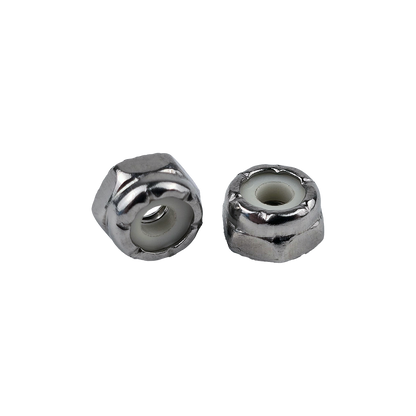

#4-40 Nylon Insert Lock Nuts by Bolturos

These nuts are made of high-quality 18-8 stainless steel for corrosion resistance. The nylon insert grips the screw to prevent loosening from moderate vibration without damaging threads. Nylon insert locknuts are reusable a couple of times, however the nylon's holding power degrades with each use.

Specifications

Thread Size: #4-40
Thread Diameter: 0.112"
Threads Per Inch (TPI): 40 - Coarse Thread
Thread Direction: Right Hand
Drive Type: 1/4" External Hex
Width Across Flats: 0.248"
Width Across Corners: 0.278"
Thickness: 0.145"
Material: 18-8 Stainless Steel
Finish: Plain
Insert Maximum Temperature: 220° F / 105° C
Insert Color: Natural
System of Measurement: Inch (Imperial / U.S.)
Country of Origin: China, Taiwan, or Thailand
