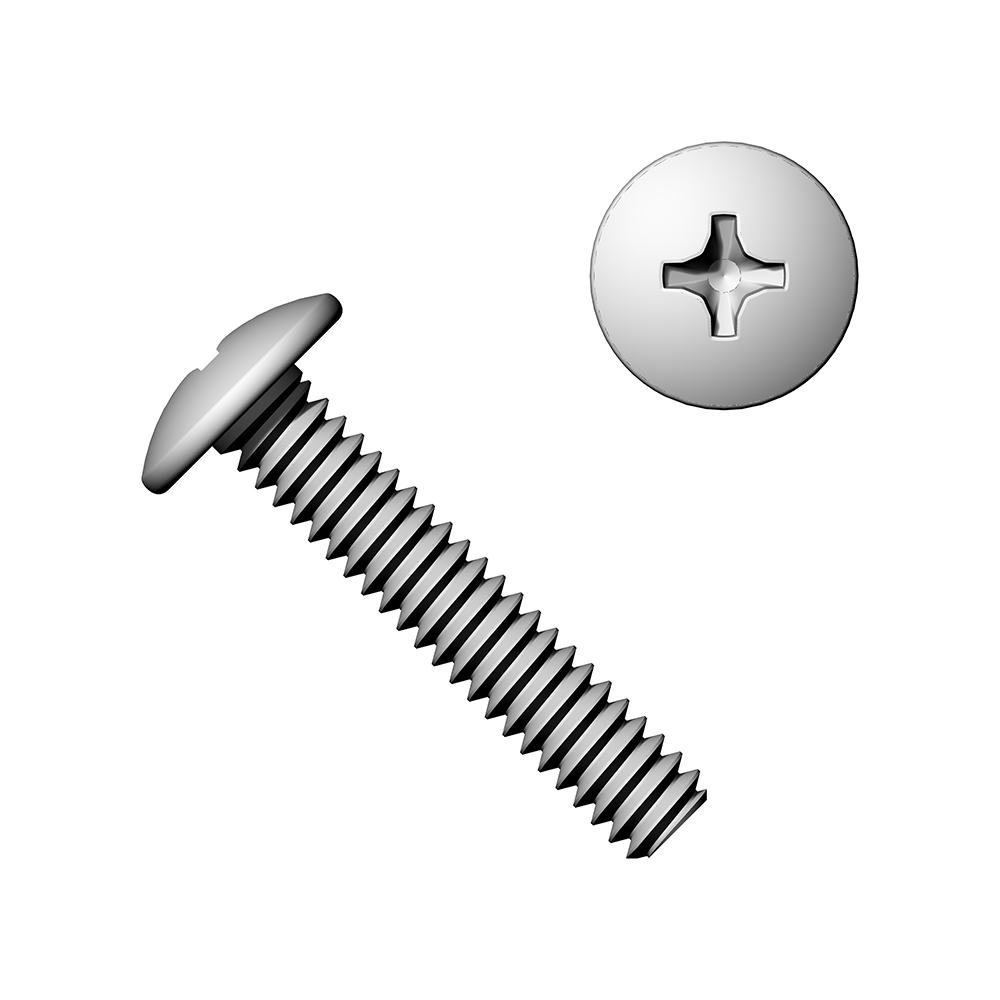

#10-24 Phillips Truss Head Machine Screws 18-8 Stainless Steel

#10-24 Phillips Truss Head Machine Screws by Bolturos

These screws are made of high-quality 18-8 stainless steel for corrosion resistance and feature a deep #2 Phillips drive. The truss head design provides a wide bearing surface to reduce the likelihood of crushing thin material. Fully threaded with a UNC #10-24 and a blunt tip.

Specifications

Thread Size: #10-24
Thread Diameter: 0.190"
Threads Per Inch (TPI): 24 - Coarse Thread
Thread Direction: Right Hand
Length: Varies on selection*
Drive Type: Phillips #2
Head Type: Truss (Type H)
Head Diameter: 0.448"
Head Thickness: 0.118"
Point: Flat
Material: 18-8 Stainless Steel
Finish: Plain
System of Measurement: Inch (Imperial / U.S.)
Standards Met: ASME B18.6.3
Country of Origin: China, Taiwan, or Thailand

*Note: Lengths over 1" are typically 1/16" shorter than stated (e.g., 2" = 1-15/16" actual). This is normal among standardized screws. Please keep this in mind if your use case requires exact lengths.
