Bolturos

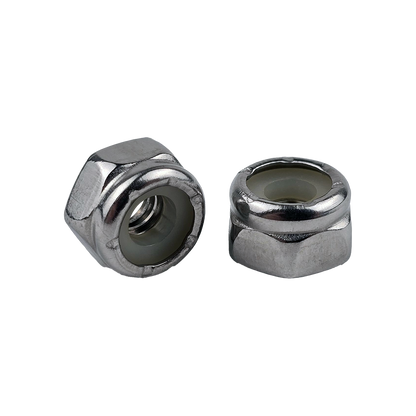

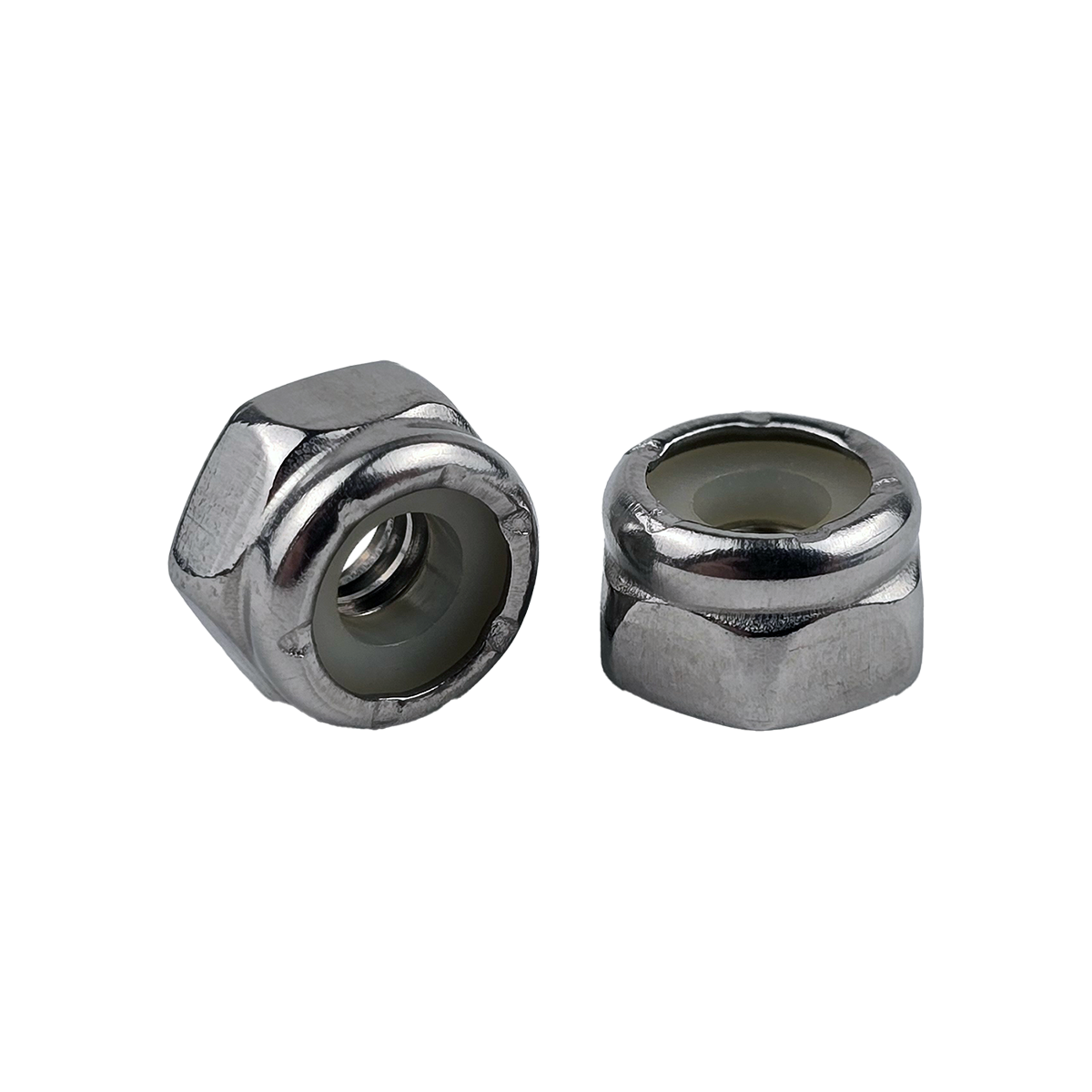

#10-24 Nylon Insert Locknuts 18-8 Stainless Steel

$0.11 USD

Sale Sold out

Shipping calculated at checkout.

Package Type Each Bag of 100 Bag of 500

Quantity

#10-24 Nylon Insert Lock Nuts by Bolturos

These nuts are made of high-quality 18-8 (also known as 304 or A2) stainless steel for corrosion resistance. The nylon insert grips the screw to prevent loosening from moderate vibration without damaging threads. Nylon insert locknuts are reusable a couple of times, however the nylon's holding power degrades with each use.

Specifications

Thread Size: #10-24
Thread Diameter: 0.190"
Threads Per Inch (TPI): 24 - Coarse Thread
Thread Direction: Right Hand
Drive Type: 3/8" External Hex
Width Across Flats: 0.373"
Width Across Corners: 0.415"
Thickness: 0.242"
Material: 18-8 Stainless Steel
Finish: Bright
Insert Maximum Temperature: 220° F / 105° C
Insert Color: Natural
System of Measurement: Inch (Imperial / U.S.)
Country of Origin: China or Taiwan
